Leech 38 Power Cat - Version 2

Watch the video »

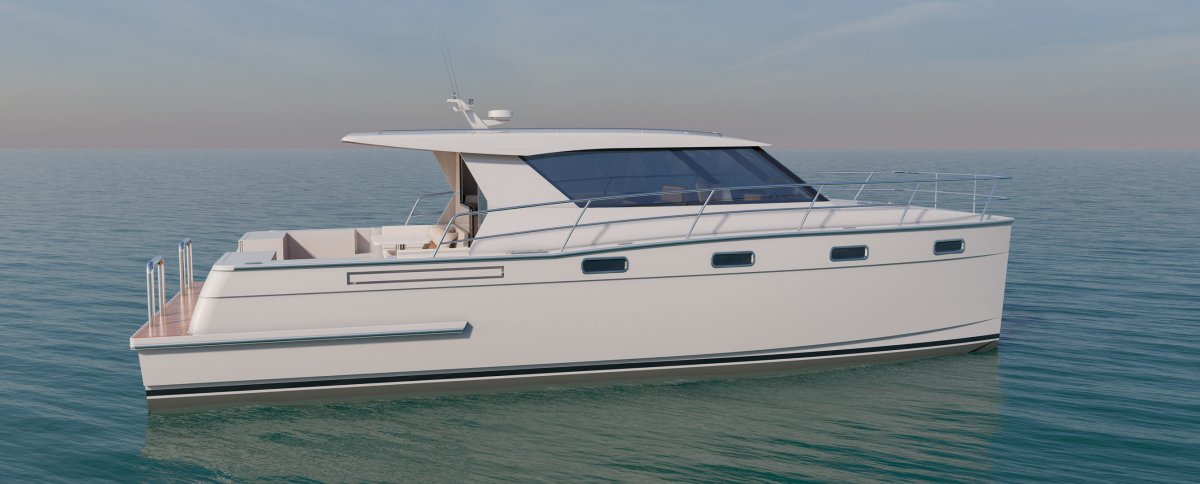

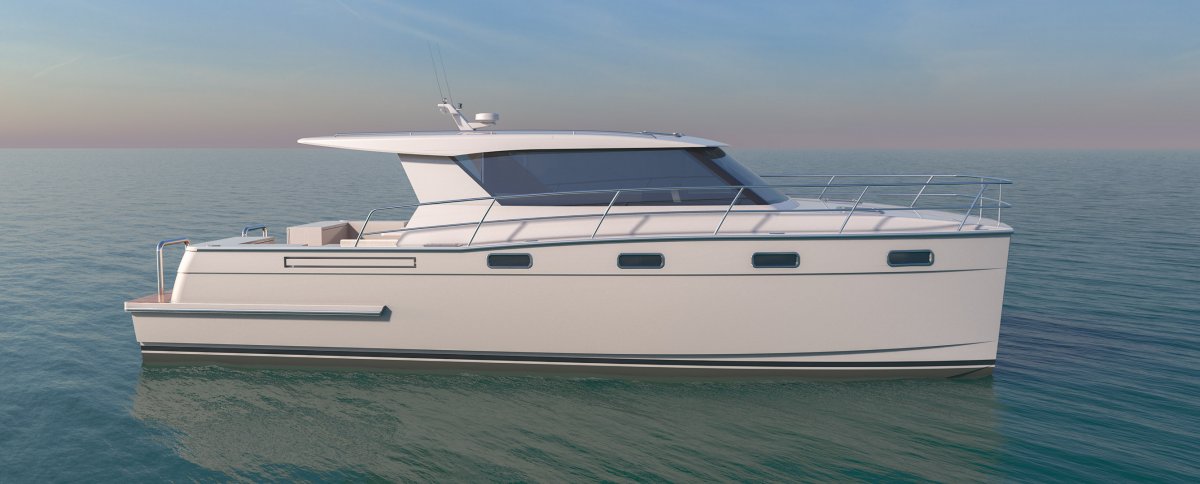

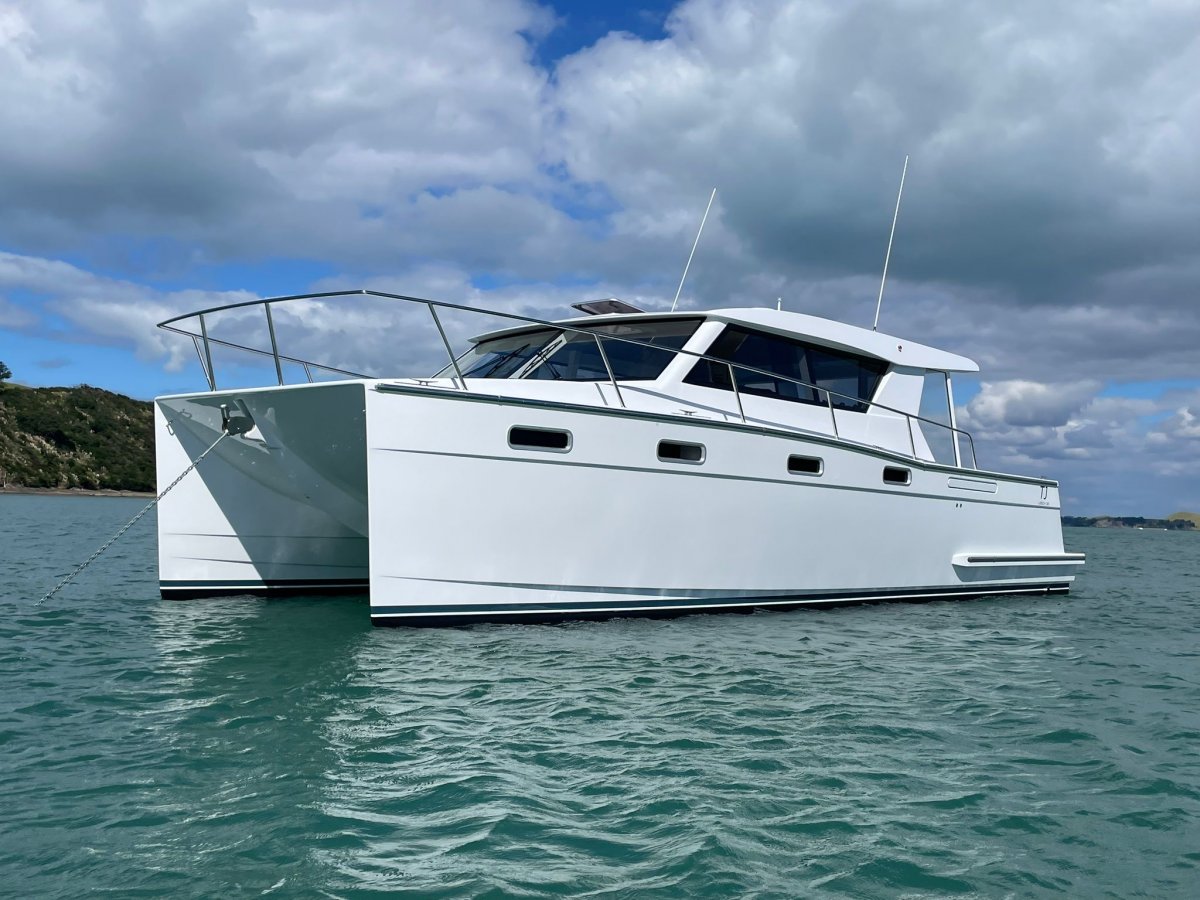

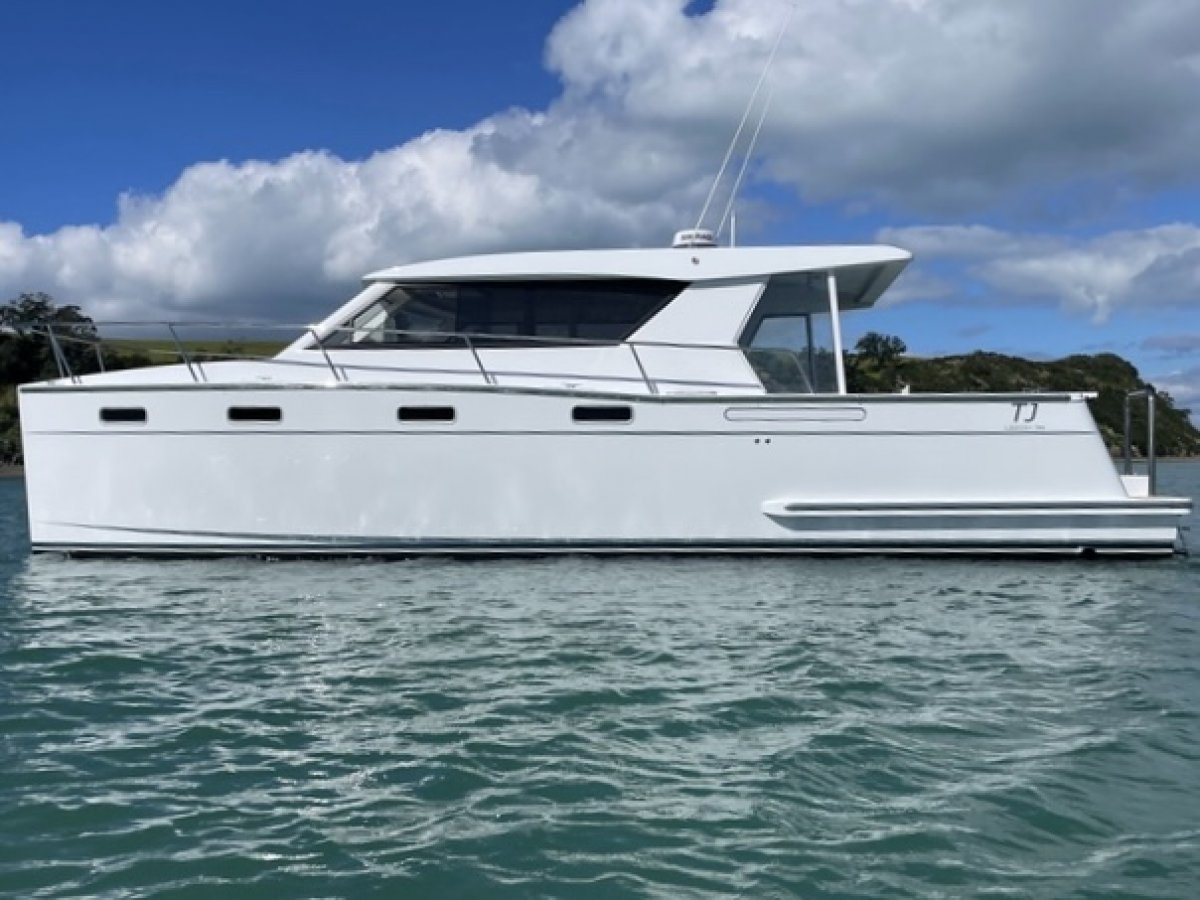

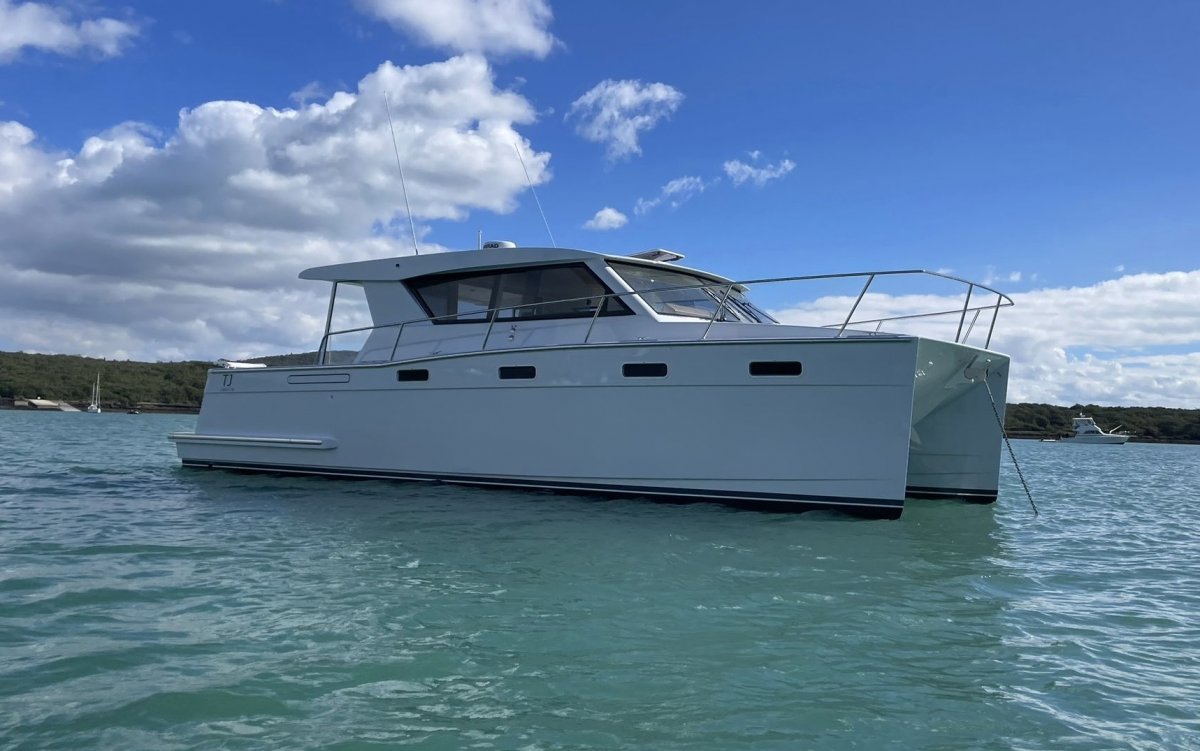

The Leech 38 Semi-Displacement Power Catamaran – V2 was designed for two experienced boat owners, with a strong emphasis on performance, comfort, and practicality.

The vessel is constructed using epoxy/E-glass, foam-cored, pre-laminated composite panels, precision CNC-cut for accuracy and efficient construction. The foam core construction also provides excellent sound insulation, resulting in a remarkably quiet and comfortable boat underway.

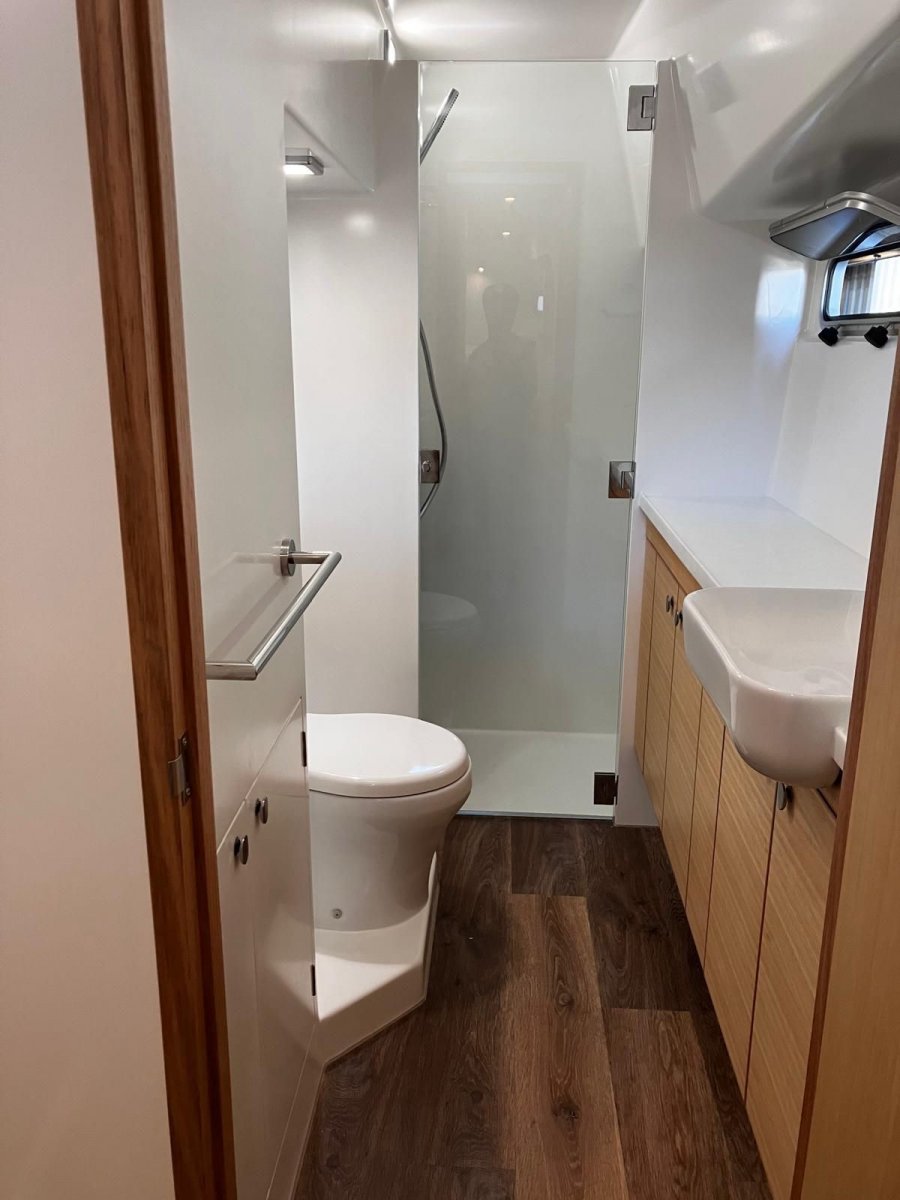

The lower accommodation offers an impressive layout with three cabins and a spacious bathroom. To port, there is a forward cabin featuring a queen-size berth, with a generous bathroom aft, complete with an enclosed shower. On the starboard side, there is a forward cabin with a queen-size berth and an additional aft cabin featuring a double berth.

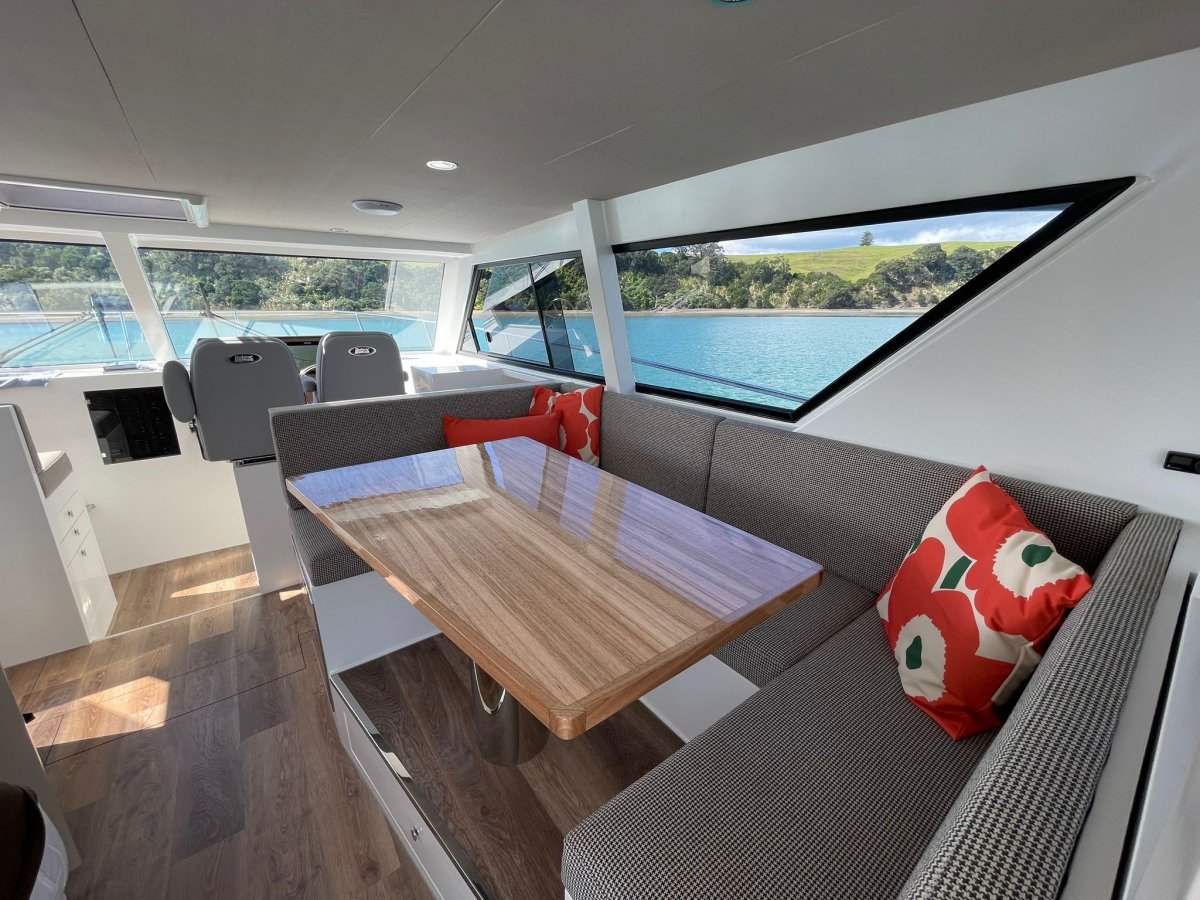

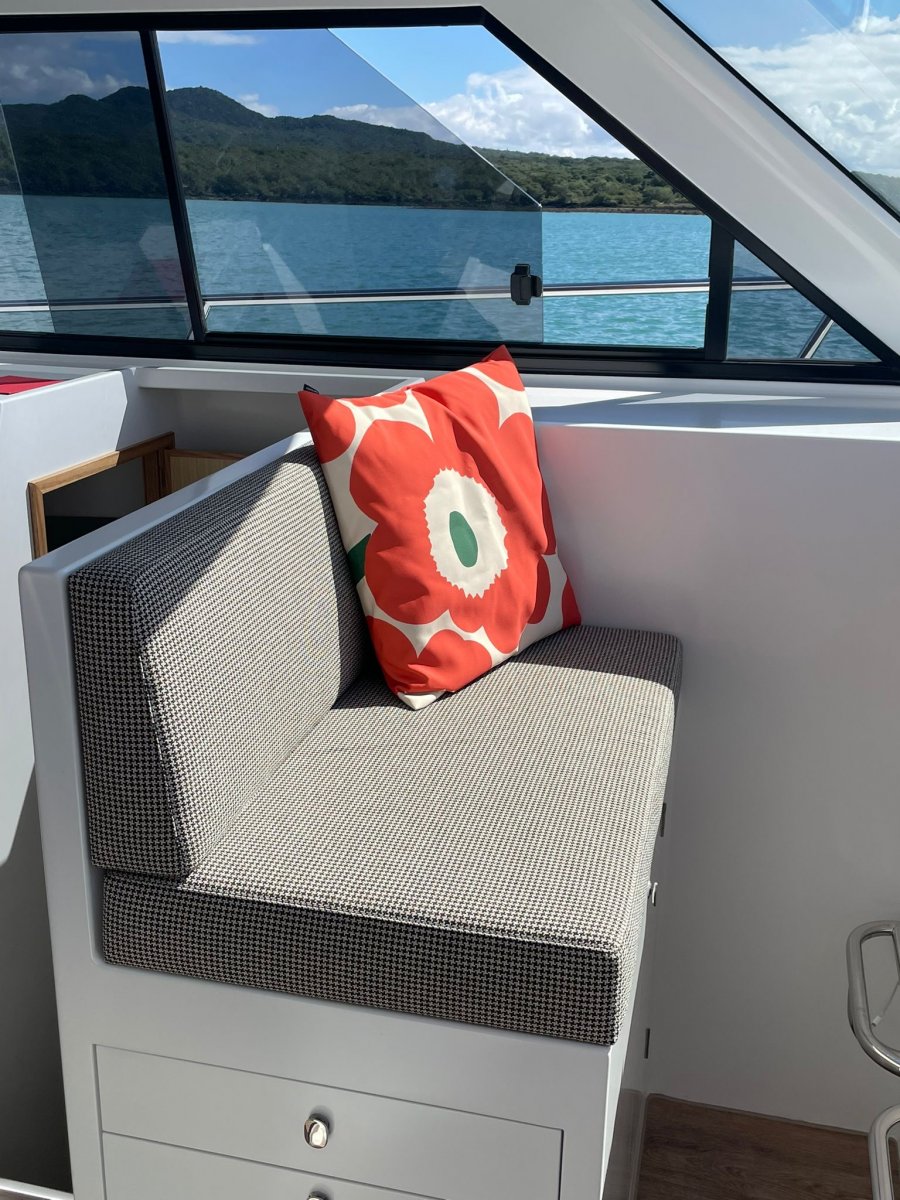

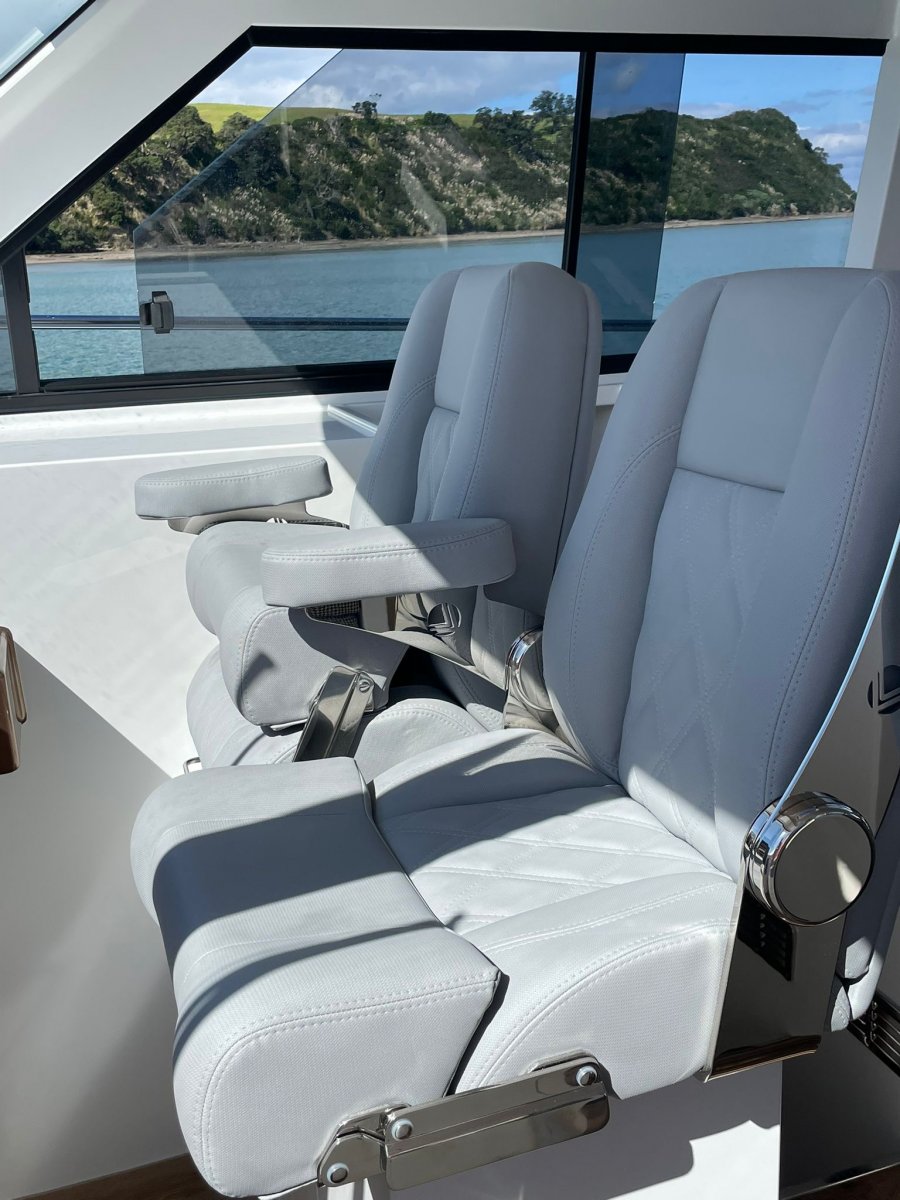

The spacious saloon features twin helm seats and twin navigator seats.  A large, well-appointed galley is located to port, while a comfortable U-shaped settee and dining table occupy the starboard side, creating an inviting space for entertaining and relaxing.

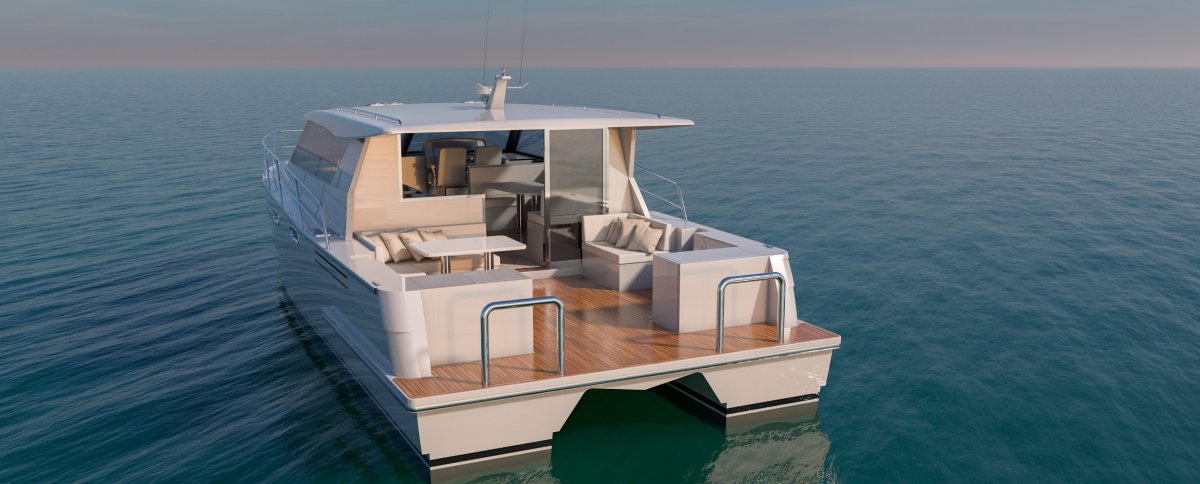

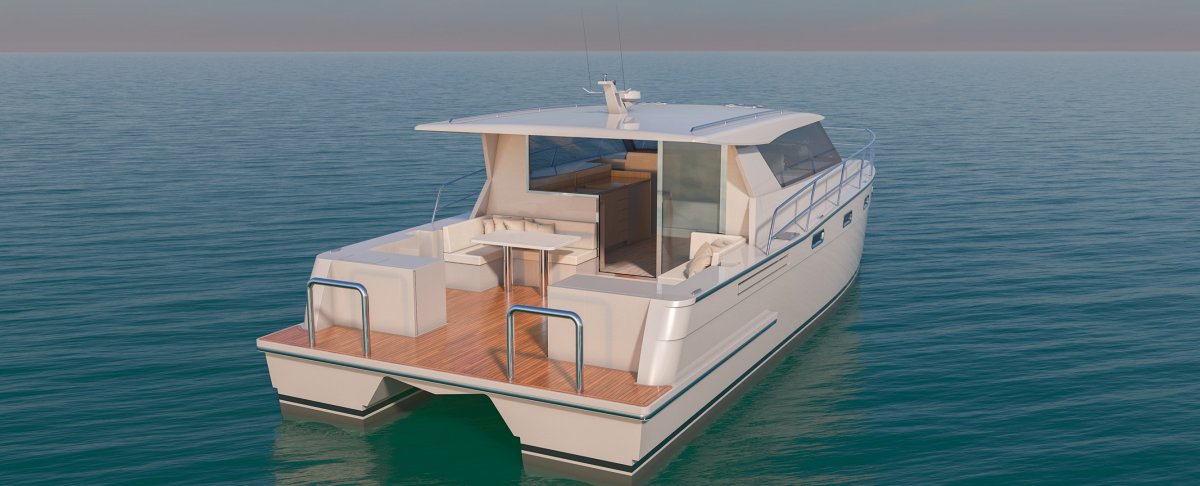

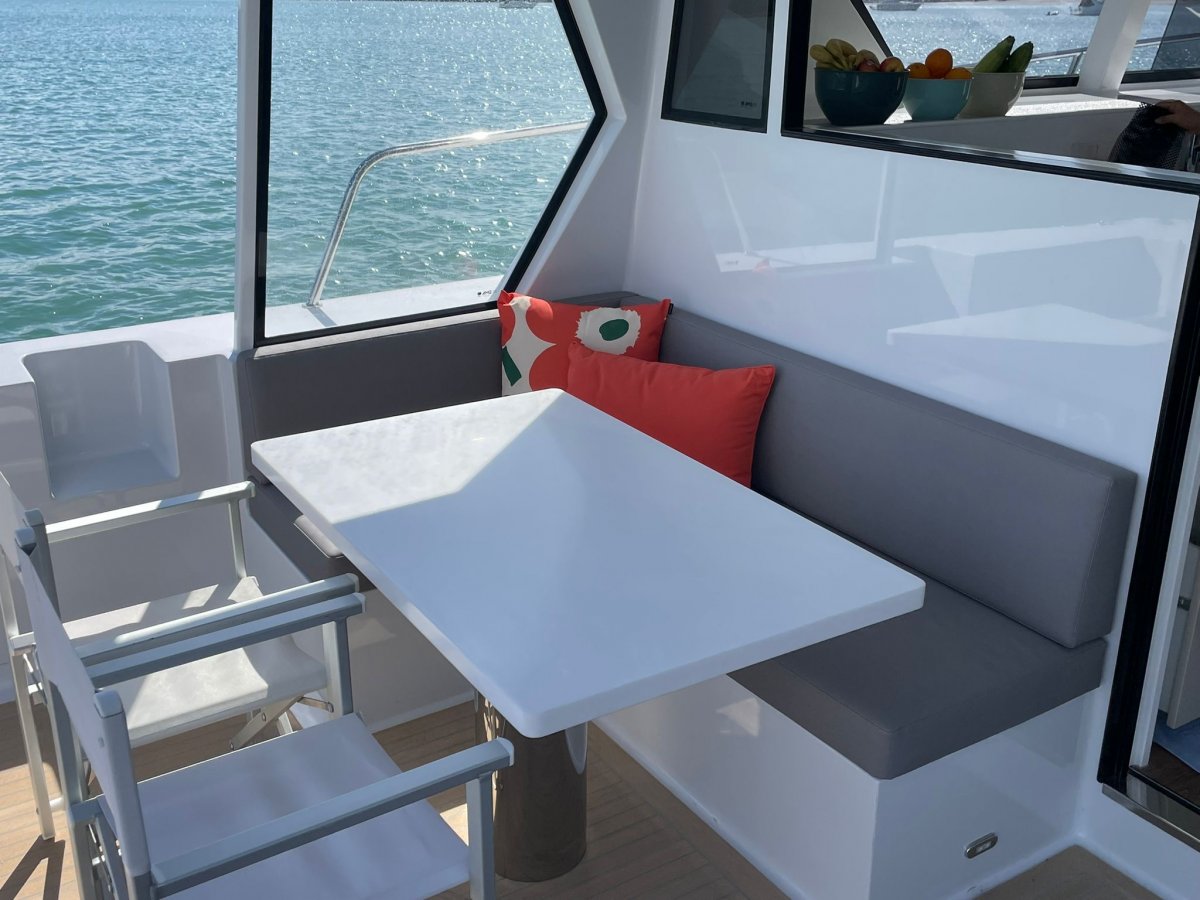

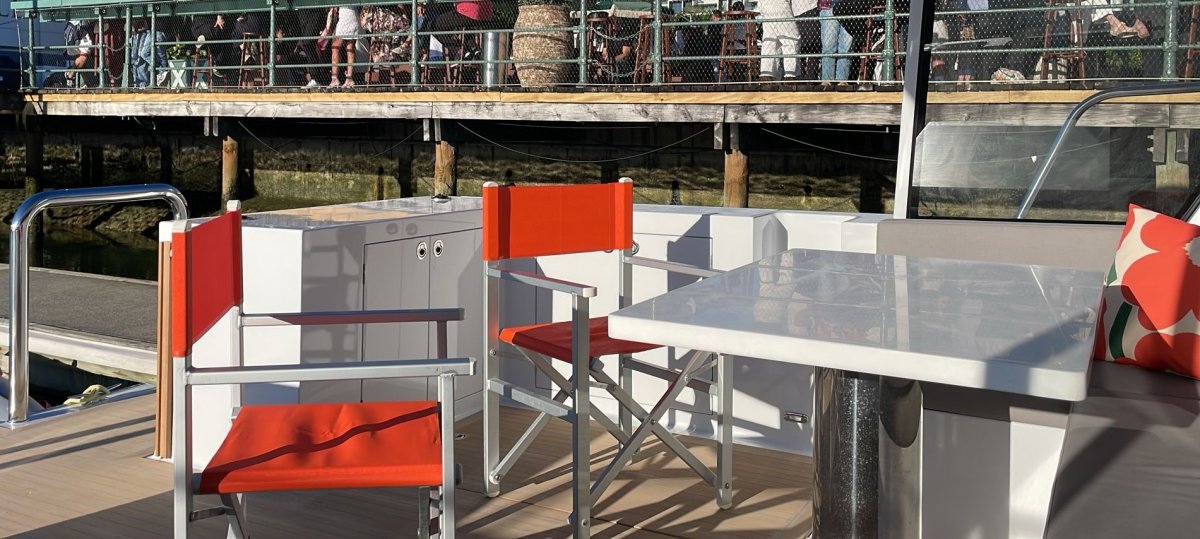

A large sliding door and electric drop-down window seamlessly connect the saloon with the cockpit, providing excellent indoor-outdoor flow. The generous cockpit features an L-shaped settee and table to port, with additional seating to starboard.

The Leech 38 has been designed with versatility in mind and can also be constructed in aluminium, offering an alternative to the lightweight composite construction.

Principal dimensions

  • LOA 11.850m
  • BOA 4.900m
  • Displacement Dry 8700kg
  • Cruising Speed 20 knots
  • Max Speed 28.5 knots
  • Fuel 2 x 380L
  • Fresh Water 2 x 400L
  • Engines 2 x Steyr SE268 280hp

Pricing
